IC Chip Milling Machine
Products
AIC3

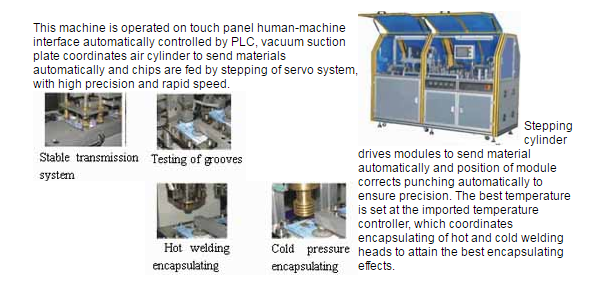

Features:

1.       It incorporate hot welding, module punching, encapsulating and testing.

2.       Hot welding and them cold welding, with good effects.

3.       Automatic correction of module position, with high precision.

4.       Automatic identification and rejection of poor modules.

5.       Automatic testing of groove position.

6.       Automatic monitoring and protection for module stepping.

7.       Automatic replacement of card feed and discharge boxes.

8.       Automatic program-controlled running.

9.       Alarm in case of errors and automatic machine halt.

10.    Rational and stable material sending structure.

---------------------------------------------------------------------------------------------------------------------------------

Technical parameters:

Model

AIC3

Power source

AC 220V/50 HZ

Total power

2.0KW

Air source

6Kg/cm2

Weight

1000Kg

Output

2500-3500 pcs /hour

Control method

PLC+ servo system

Operator

1 person

Specification of cards

ISO standard cards

Overall dimension

L2170×W880×H1800mm
